Company Profile
Gmac Circle Sdn Bhd
is the appointed sole dealer and installer for Chap Sun Tangki Sdn. Bhd. "Sun" Brand Pressed Steel Sectional water tank in northern region of Malaysia. "Sun" Brand pressed steel tank had enjoy renowned reputation for their commitment to provide good quality product and excellent customer services over their rich 40 years of history.
.
Gmac Circle Sdn Bhd is a company specialized in installation of High Density Polyethylene Lining system, HDPE Lining. Technically supported by our principals, we strongly believe that we will be able to provide the highest quality Pressed Steel Sectional Water Tank with HDPE Lining System.
.
Products supplied by Gmac Circle Sdn. Bhd. are all approved by SIRIM QAS, PBA (Penang), IKRAM and PSB (Singapore). All components of the "Sun" Pressed Steel Tanks meet the requirements of British Standard B.S. 1564:1975 for pressed steel sectional rectangular tank with external flanges and all Hot-Dip Galvanizing complied with ISO 1461:1999 from the source approved by PBAPP.
Water Tanks
SUN Brand pressed steel sectional water tanks are fabricated in 2 different measurements namely imperial and metric. We provide panels panels in 1,220 mm x 1,220 mm for imperial and 1,000 mm x 1,000 mm for metric measurements. For tanks of non standard measurements required, we do provide panels in 1,220 mm x 610 mm and 1,000 mm x 500 mm.

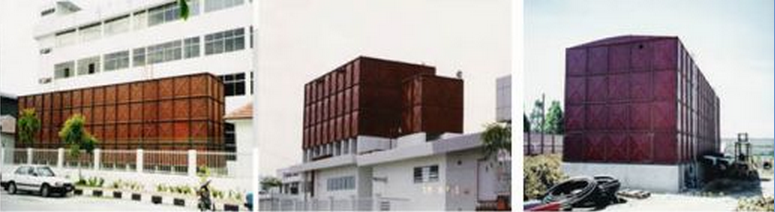

Mild Steel
This is the basic form of pressed steel sectional water tank. The material used is Hot-rolled steel plate conformed to BS 4360 grade 43A or equivalent. It comes with a shop painting of one coat red oxide on the external surface and two coats bituminous paint on the internal surface.

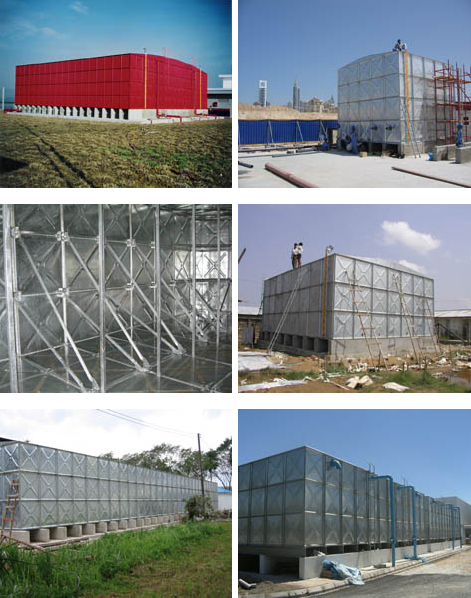

Hot-Dipped Galvanised
Water tank panels, internal bracings and accessories will be processed with galvanizing complying with ISO 1461:1999. This process would prolong the life span of the water tank and also provide for many years of maintenance free.

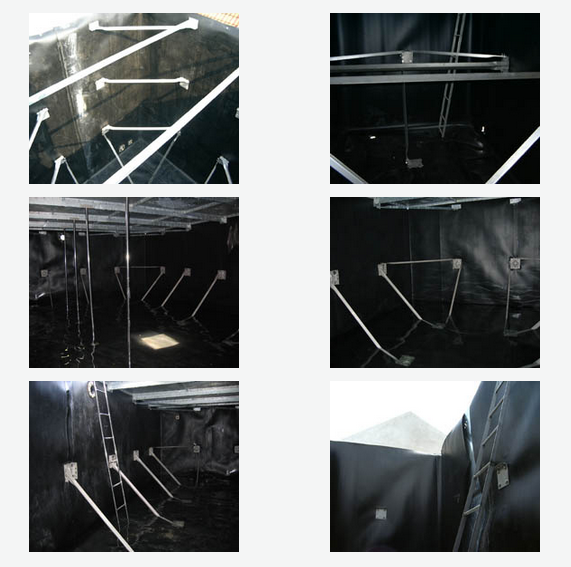

Hot-Dipped Galvanised with HDPE Lining and Internal Stainless Steel Bracing
The water tank panels will be galvanized and installed with a layer of 2.0 mm thick HDPE lining internally. All components in contact with water will be of Stainless Stell 304 or 316 materials upon request. Under these circumstances, the tank will be protected against the corrosion of water. This will provide a safer and cleaner storing of water within the tank.
Keyword(Please Do Not Delete)
- Welding Machine Services
- Welding Consumables
- HDPE Lining
- Welding Electrode
- Pressed Steel Water Tank
- Welding Machines Services
- Hope Lining
- Welding Consumables
Welding Machines

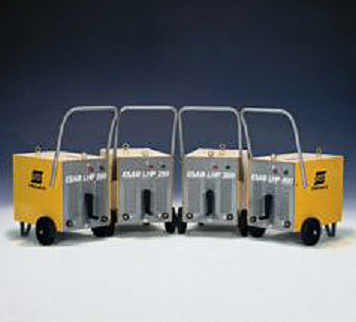

LHP 200/250/300/400
The power arc DC is an economical range of movable core rectifiers, robustly designed to suit industrial users, farmers, repair shops or anyone else wanting high DC welding current with good welding properties at a relatively low cost.
The power arc DC is an economical range of movable core rectifiers, robustly designed to suit industrial users, farmers, repair shops or anyone else wanting high DC welding current with good welding properties at a relatively low cost.

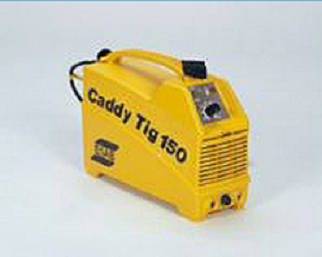

CADDY TIG 150 DC
The Caddy Tig 150 is a lightweight TIG/MMA unit. It weighs only 5.5 kg, making it easy to take to places which are difficult to reach.
The touch start feature means that you start at a minimum current, 13 A, and automatically increases to the pre-set current. Starts are smooth and there is less risk of tungsten enclosures. Use with an ESAB TIG torch with gas valve.

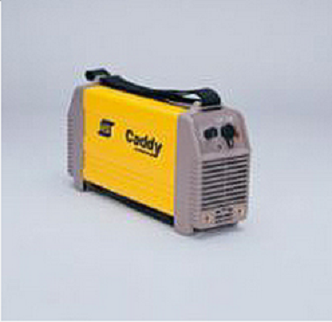

CADDY 250 PROFESSIONAL
A high-capacity inverter designed for professional welders working with thick materials. For example, when welding thick beams on building sites or repairing heavy machinery with 5 mm electrodes. Same casing and features as the Caddy Professional 200.

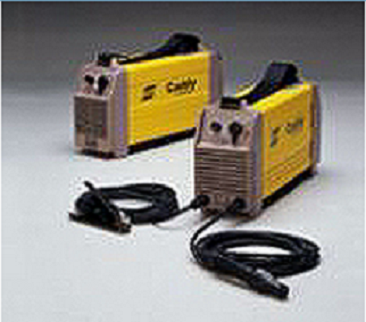

CADDY 140/200 PROFESSIONAL
An inverter range specially designed for professional welders with rigorous requirements. Built-in automatic arc force and the Arc plus function secures professional performance. High operating voltage permits long mains cables. The remote control is useful when welding pipes or when welding in damp and confined areas.
